Replication Job Wizard for Hyper-V: Networks

Note

The Networks page is skipped if you have chosen an existing backup as the source for your replication job on the Source wizard page.

To map source VM virtual networks to appropriate target virtual networks, please do the following on the Networks page of the wizard:

1. Select Enable network mapping.



2. The Network Mappings section opens. You have the following options:

   • Create a new mapping:

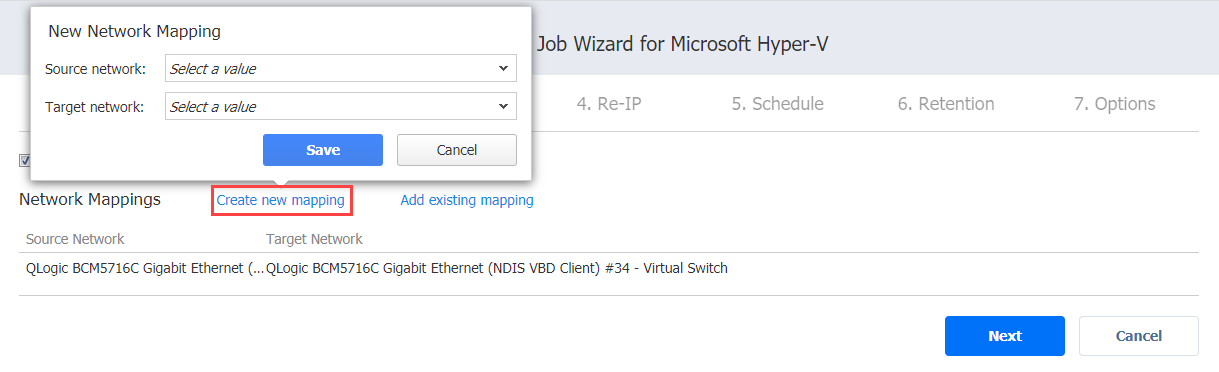

     1. Click Create new mapping.

     2. The New Network Mapping dialog box opens. Choose a source network and target network and click Save.



   • Add an existing mapping:

     1. Click Add existing mapping.

     2. The Network Mappings dialog box opens. Choose one or more appropriate network mappings and close the dialog box.
