Site Recovery Job Wizard: Networks

On the Networks page of the Site Recovery Job Wizard you can map source VM virtual networks to appropriate target virtual networks and test networks.

Please proceed as follows:

1. Select Enable network mapping.

   Note
   A failover or a failback action needs to be on the actions list to allow enabling network mapping for your site recovery job.

2. The Network Mapping section opens. You have the following options:

   • Create a new network mapping:

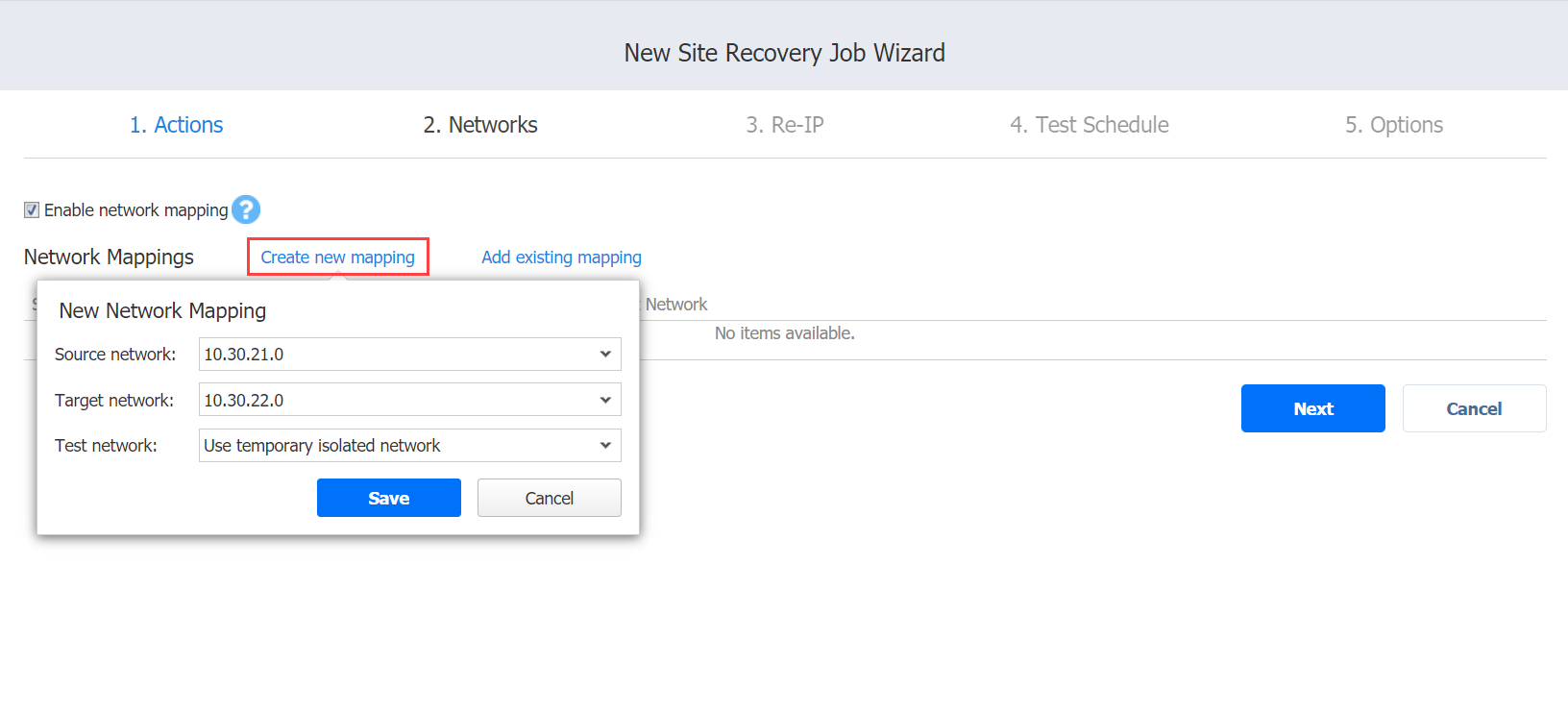

     1. Click Create new mapping.

     2. The New Network Mapping dialog opens. Choose a source network, a target network and a test network, and click Save.


   • Add an existing network mapping:

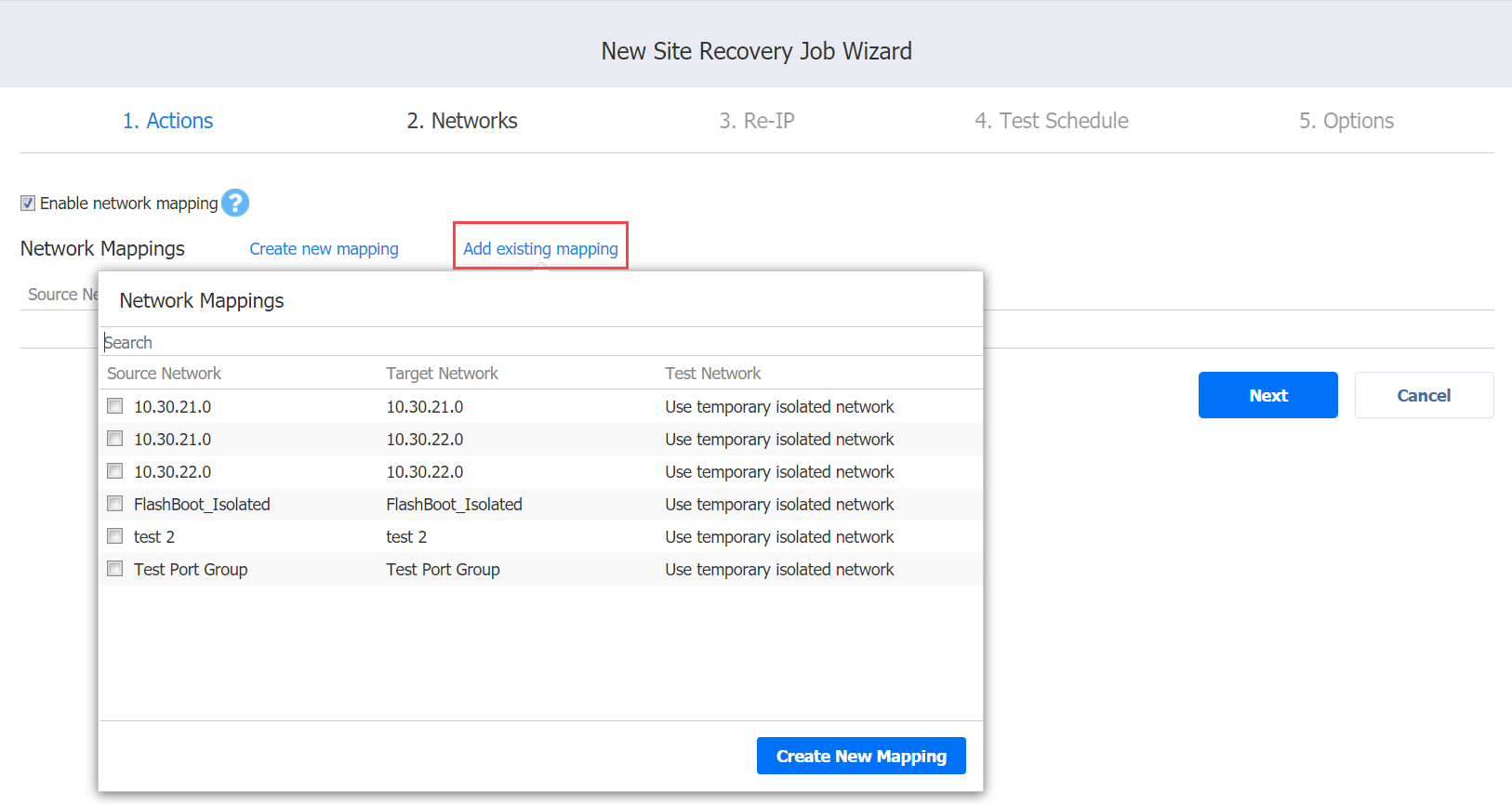

     1. Click Add existing mapping.

     2. The Network Mappings dialog opens. Choose an appropriate network mapping and close the dialog box.
