Failover Job Wizard for Microsoft Hyper-V: Re-IP

When the IP addressing scheme for the target replica differs from the IP addressing scheme for the Hyper-V source VMs, your failover job needs to have relations between your source VMs addresses and target replica VMs addresses so that the job is performed successfully. Such relations are called Re-IP rules.

Warning
Hyper-V Integration Services must be running on source VMs to enable successful re-IP for your failover job.

To map a source VM IP address to a specific target IP address, do the following on the Re-IP page of the wizard:

1. Select Enable Re-IP.

2. The Re-IP Rules section opens. Click the Select VMs link.

3. The Re-IP dialog box opens. In the list of your source VMs, select at least one and close the dialog box.

4. The following options are available:

   • Create a new rule:

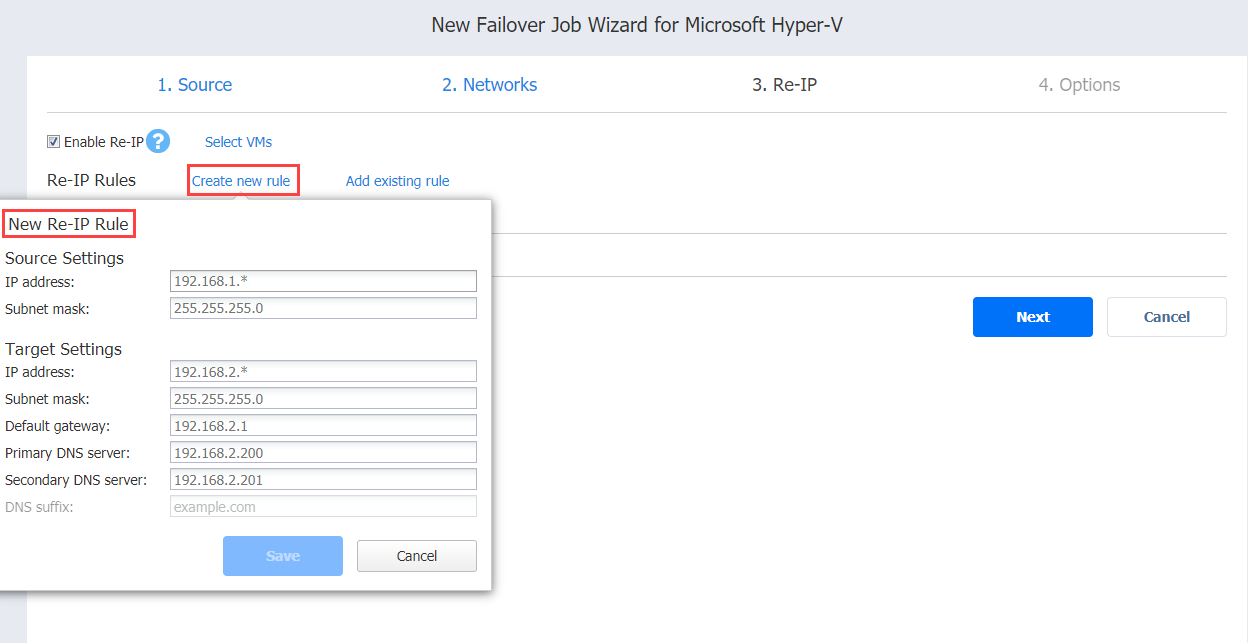

     1. Click Create new rule.

     2. The New Re-IP Rule dialog box opens. Enter source and target settings for the re-IP rule and click Save.




Note
You can use wildcard characters for IP addresses. For example, if you enter  192.168.1.* -> 10.30.30.* for the re-IP rule, a source VM IP address such as 192.168.1.50 will be changed to the 10.30.30.50 IP address for your failover job. If several re-IP rules are applicable to your source VM, the product will define the most suitable rule and apply it to the source VM IP address.
